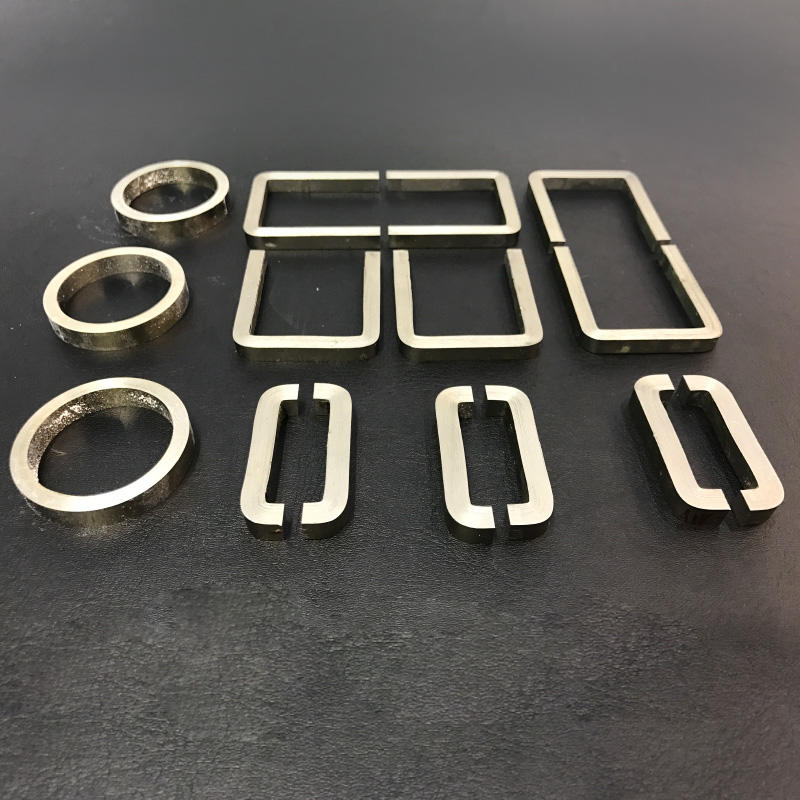

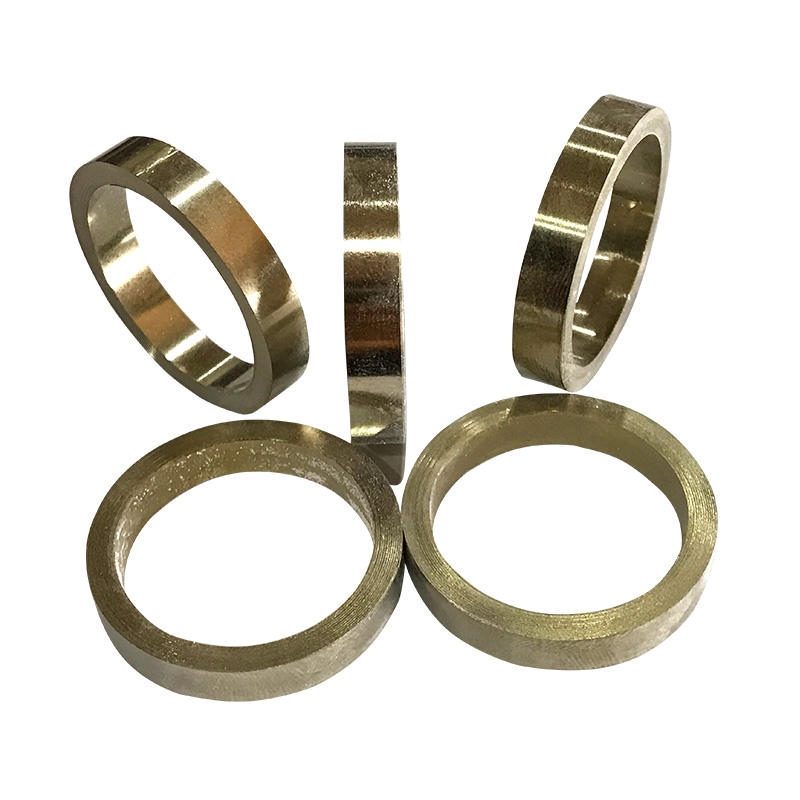

Mumetal Cores
Mumetal Cores
Model：1J85 1J55 1J50
Size：Customized
Classify：Mumetal Cores
Date：2021-09-25 12:55
Detail：Mumetal is a NiFe alloy with very high permeability so it is also called permalloy. High efficiency / Low temperature rise. Smaller component size / Higher power throughput High temperature operation...
|
Base Material |
Nickel Iron material |
||||
|
Ribbon Thickness |
60-300 μm |
||||
|
Ribbon Density |
8.250-8.745 g/cm3 |
||||
|
Curie Temperature |
400-410℃ |
||||
|
Continuous Service Temperature |
150℃ |
||||
|
Code |
Material |
Band Thickness (mm) |
Permeability μ4 |
Permeability μmax |
Saturation Induction (T) |
|
1J85 |
72-83% Ni |
0.05-0.2 |
60000-240000 |
150000-350000 |
0.6-0.8 |
|
1J55 |
54-68% Ni |
0.05-0.2 |
40000-80000 |
100000-160000 |
1.2-1.5 |
|
1J50 |
45-50% Ni |
0.1-0.2 |
10000-12000 |
90000 |
1.5-1.6 |
